HIGH VOLUME DIESEL ENGINES

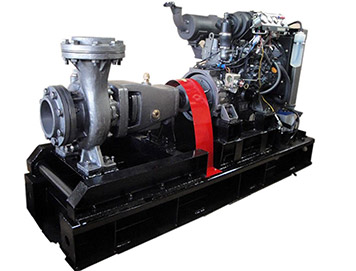

END SUCTION, VERTICAL DELIVERY, DIRECT DRIVE, DIESEL ENGINE DRIVEN, CENTRIFUGAL PUMPS
Available in the architectures of oil chamber-back pull out design with cartridge inserted bearings and dry chamber-footed design with housing inserted bearings.
High capacity @ Low/Medium/High heads and specially designed for sprinkler & lift irrigation , firefighting, and flood control applications
| DDH500/4TNV | 6” x 4” | H max 270 ft | 22000 gph @ 200 ft | 47 HP YANMAR 4TNV88 |
| DDH500/4TNVT | 6” x 4” | H max 300 ft | 22000 gph @ 235 ft | 55 HP YANMAR 4TNV84T |
| DDH600/3TNV | 6” x 6” | H max 150 ft | 36000 gph @ 85 ft | 29 HP YANMAR 3TNV82 |
| DDH600/4TNV | 6” x 6” | H max 200 ft | 38500 gph @ 135 ft | 47 HP YANMAR 4TNV88 |
| DDH600/4TNVT | 6” x 6” | H max 235 ft | 38500 gph @ 170 ft | 55 HP YANMAR 4TNVT84T |
| DDM500/3TNV | 6” x 4” | H max 150 ft | 25000 gph @ 120 ft | 29 HP YANMAR 3TNV82 |
| DDM500/4TNV | 6” x 4” | H max 185 ft | 25000 gph @ 150 ft | 47 HP YANMAR 4TNV88 |
| DDXM500/3TNV | 6” x 4” | H max 135 ft | 25000 gph @ 100 ft | 24 HP YANMAR 3TNV76 |
| I300/3TNV | 3” x 3” | H max 250 ft | 11000 gph @ 200 ft | 24 HP YANMAR 3TNV76 |
| I300/3TNV-4X3 | 4” x 3” | H max 220 ft | 14000 gph @ 150 ft | 24 HP YANMAR 3TNV76 |
| J300/3TNV | 3” x 3” | H max 300 ft | 11000 gph @ 250 ft | 29 HP YANMAR 3TNV82 |
| J300/3TNV-4X3 | 4” x 3” | H max 270 ft | 14000 gph @ 200 ft | 29 HP YANMAR 3TNV82 |
| J300/4TNV | 4” x 3” | H max 320 ft | 16500 gph @ 250 ft | 47 HP YANMAR 4TNV88 |
